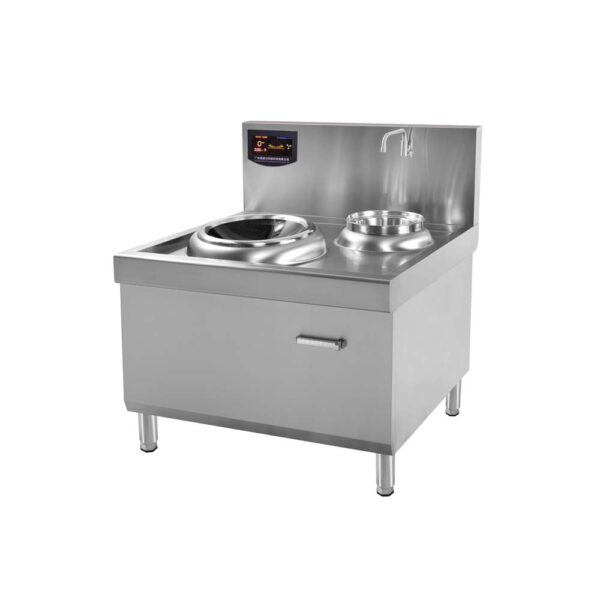

Induction Double-head And Single-tailed Small Frying Stove

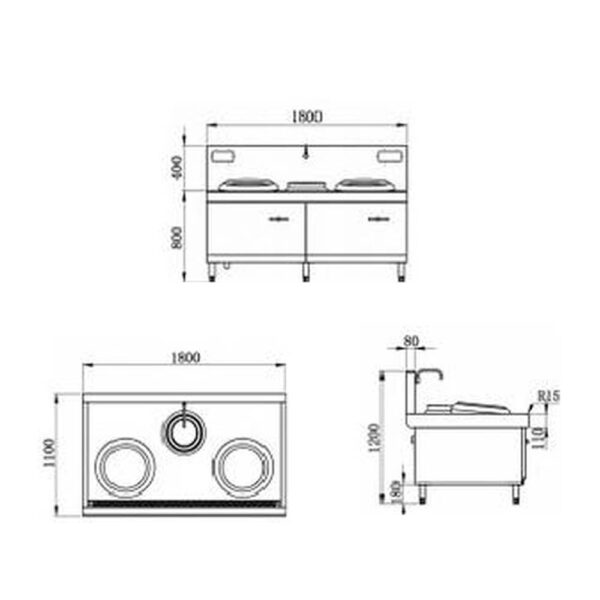

Product Model Overall Dimensions (mm) Rated Voltage Rated Power Microcrystalline Glass Plate Size (mm) Standard Iron Pot Outer Diameter (mm)
GDXDL-X4001I-1 1500×900×(800+400) 380V/50Hz 12kW×2 φ400 φ500
GDXDL-X4001I-1 1800×1100×(800+400) 380V/50Hz 15kW×2 φ400 φ500
GDXDL-X5001-1 2000×1100×(800+400) 380V/50Hz 15kW×2 φ500 φ600
GDXDL-X5001-1 2000×1100×(800+400) 380V/50Hz 18kW×2 φ500 φ600
Category:

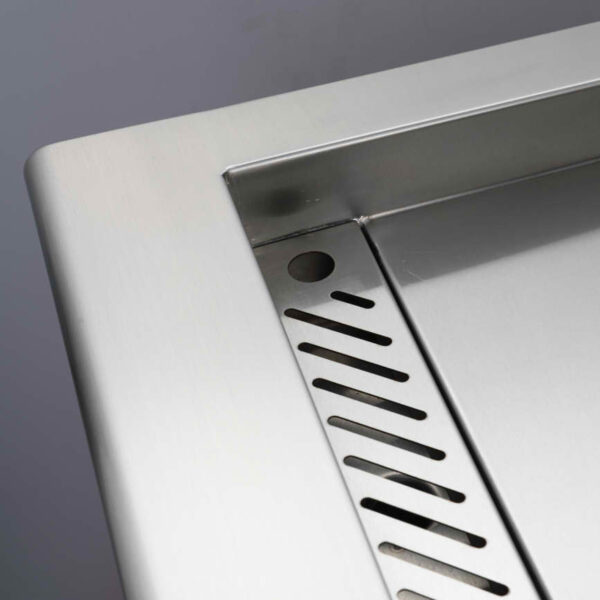

Premium Appearance & Exquisite Workmanship

The cooker features generous, timeless and practical design with high-precision sheet metal structure, delivering perfect overall appearance after installation.

High-Grade Self-Developed Movement

Equipped with our in-house developed bridge-type movement with top-tier configuration. All components adopt the highest industrial standards. It provides ample power and stable performance without failures during deep-frying or long-hour continuous high-temperature operation in kitchens during summer.

Uniform Heating Without Dead Zones

It adopts 216-strand pure copper high-frequency coil, which generates even magnetic field and large heating area with zero heating blind spots.

Simulated Open Flame Technology, Free Wok Tossing

The main unit applies industrial digital analog circuit with rapid response, supporting free wok lifting within 15cm height.

Thickened Polished Microcrystalline Glass

6mm thick polished microcrystalline glass panel is adopted. It is shatter-resistant, durable and possesses excellent magnetic concentration performance.

High Dustproof, Waterproof & Oil Fume Resistance

The cooling fan, heat power adjustment switch and display screen have passed IP6 grade test against dust, water and oil fume.

Compliance with National Standards

Conforms to GB4706.52-2008, GB4706.1-2005 and GB 40876-2021 Minimum Allowable Values of Energy Efficiency and Energy Efficiency Grades for Commercial Induction Cookers.

Energy Efficiency Class: Class 1
